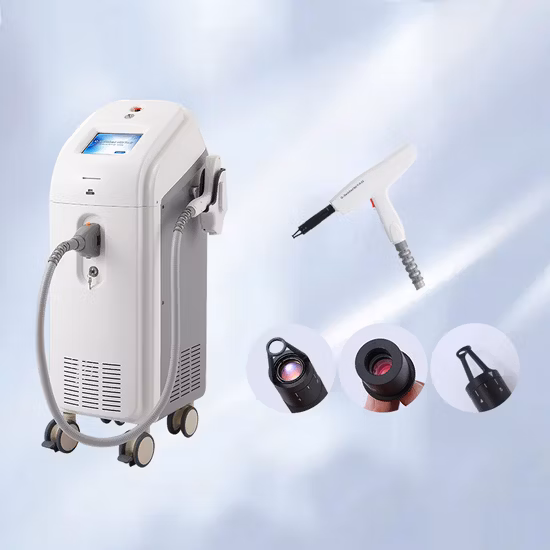

Spectra ND YAG Laser Best New Portable Q Switch ND YAG Laser Tattoo Removal Machine

Basic Info

Model NO.	HS-220
Spot Size	1~5mm, 7mm
Operate Interface	8" True Color Touch Screen
Cooling System	Air&Water Circulation with Copper Radiator
Warranty	Technical Support Forever
OEM/ODM	Welcome
Laser Rod	7mm or Double Rods 6+7mm
Used for	Tattoo Removal, Pigment Removal
USB & IC Card	Support
Transport Package	Aluminum Packing
Specification	CE1023, ISO13485, FDA registered
Trademark	Apolomed
Origin	China
HS Code	8543709990
Production Capacity	2000PCS/Year

Product Description

Spectra ND YAG Laser Best New Portable Q Switch ND YAG Laser Tattoo Removal Machine
Product Description
Medical CE approved systemFor pigmentation and skin peelingUser friendly interfaceThe special wavelength of YAG laser can penetrate skin of human body according to the theory and practice of selective laser decomposing, the instrument used the laser wave to break chromatophore into pieces without damaging normal tissue, which also can be naturally absorbed by the body metabolism.Intuitive User Interface

·Advanced one finger colour touch screen·With different application for selection·Professional mode for experienced staff·Standard mode with preset recommended protocols

Advantages·Stable, reliable and powerful laser output




























·Single rod or dual rod selectable·Excellent performance without side effects

























·Water filter ensure the clean and smooth water circulation·Interlock design ensures the safety treatment environment·Modularized design for convenient maintenance·IC card management control design. Apply RTL operation system

APOLOMED has been produced Q-Switched ND YAG laser over 15years. Our HS-220 is an excellent tattoo removal expert, which you can get amazing result even first one time. It is clinically proved to be effective and safety. OUR Q-SWTICHED Nd:Yag lasers are used in the leading plastic surgery, dermatology, and laser hospitals value Q-switched lasers for their efficacy for a wide of skin issues, mainly for soft peeling and unwanted different kinds of tattoos.WITH 2 DIFFERENT operation mode: professional Mode for skilled operators to adjust parameter freely. Standard Mode with different treatment application selectable and recommended preset treatment protocol.

Feature Of Our QS Laser Tattoo Removal Equipment

1.Stable, reliable and powerful laser output

2.Single rod or dual rod selectable

3.Water filter ensure the clean and smooth water circulation

4.Interlock design ensures the safety treatment environment

5.Modularized design for convenient maintenance

6.IC card management control design. Apply RTL operation system

Specifications

Wavelength	1064nm,532nm
YAG Bar	φ7 / φ6+7mm (optional)
Max. Energy	2400mJ(1064nm)	1200mJ(532nm)	4700mJ(1064nm)	2350mJ(532nm)
Pulse Width	<10ns(Single Pluse)
Repeat rate	1-10HZ
Spot size	1~5mm
Power	800W
Operate interface	8" True color touch screen
Aiming beam	Diode 650nm (red)
Cooling system	Advanced air & water circulation cooling system
Power Supply	AC 100V or 230V, 50/60Hz
Dimension	53*40*39(L*W*H)
Weight	25kgs

Working theoryPrinciple of 1064 532nm q switched na yag laser carbon peeling treatment machine:The Special Wavelength of 532/ 1064 ya laser can penetrate skin of human body according to the theory and practice of " Selective Laser Decomposing", the instrument uses the laser-wave to break Chromatophoreinto pieces which can be naturally absorbed by the body. So that it achieves the purpose of de-freckling. The 1064nm wavelength will shatters and removes the black and blue pigments while the 532nm wavelength will shatters and removes red, pink, purple and brown pigments of the tattoo or other pigmenations without damaging the normal tissue.Applications

7mm single Laser Rod	Embroidered eyebrow removal
	Soak lip and lip line removal
	Tattoo and tattoo wound removal
	Pigmented Nevus treatment

6+7mm double Laser Rod	Tattoo and tattoo wound removal
	Pigmented Nevus treatment
	Purify birthmark, Nevus of OTA
